Product Details:
|
| Outer Diameter: | 115mm | Center Hole: | 20mm Or 22.23mm Or 25.4mm |
|---|---|---|---|
| Segment Thickness: | 1.8mm | Segment Height: | 7mm Or 10mm |
| High Light: | concrete diamond blade,circular saw concrete blade |
||

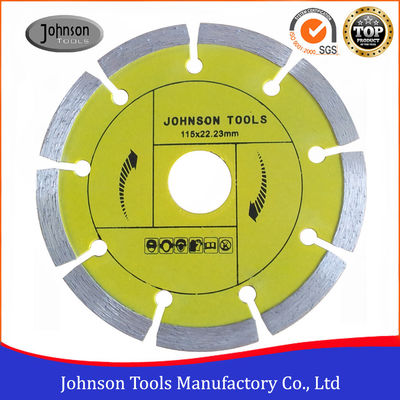

1. Description of 115mm Sintered Diamond Saw Blade for Concrete Cutting
115mm sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for all kinds of concrete, fast cutting, good cutting life.
2. Features of 115mm Sintered Diamond Saw Blade for Concrete Cutting
Advantages:
1. Fast & stable Dry or wet cutting.
2. Long lifespan and stable performance.
3. High cutting efficiency to save energy consumption.
4. Sintered technology make sure good cutting, and long lifetime.
3. Specification information of 115mm Sintered Diamond Saw Blade for Concrete Cutting
Diameter: 115mm
Segment thickness: 1.8mm.
Segment height: 7mm or 10mm
Segment number: 9nos.
Center hole: 20mm or 22.23mm or 25.4mm.
Details Spec.:
| Outside diameter | Segment specification | Hole | Teeth No. | Cutting material | |
| Thickness | Height | ||||
| 115mm | 1.8mm | 7mm | 20/22.23/25.4mm | 9nos | Concrete |
| 115mm | 1.8mm | 10mm | 20/22.23/25.4mm | 9nos | Concrete |
Other size we could do
| Item No. | Inch | mm | Teeth number | Segment Thickness | Segment Height | Inner hole |
| SGP-105 | 4 | 105 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -110 | 4.3 | 110 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -115 | 4.5 | 115 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -125 | 5 | 125 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -150 | 6 | 150 | 12nos | 2 | 7/10 | 20/22.23 |
| SGP -180 | 7 | 180 | 14nos | 2 | 7/10 | 20/22.23 |
| SGP -200 | 8 | 200 | 14nos | 2.2 | 7/10 | 20/22.23 |
| SGP -230 | 9 | 230 | 16nos | 2.2 | 7/10 | 20/22.23 |
| SGP -250 | 10 | 250 | 18nos | 2.4 | 10 | 20/25.4 |
| SGP -300 | 12 | 300 | 22nos | 3 | 10 | 20/25.4 |
| SGP -350 | 14 | 350 | 24nos | 3.2 | 10 | 25.4 |
4. Packing and Shipping of 115mm Sintered Diamond Saw Blade for Concrete Cutting
Each saw blade is packed in white box or colored box packing, then according to the size, put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
