Sintered Dry Cut Diamond Blade , 105-350mm Masonry Cutting Blade

China Sintered Dry Cut Diamond Blade , 105-350mm Masonry Cutting Blade  supplier

Large Image :  Sintered Dry Cut Diamond Blade , 105-350mm Masonry Cutting Blade

Product Details:

Place of Origin: Jiangsu
Brand Name: Johnsontools
Certification: SGS, GB
Model Number: 105-350mm

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiate
Packaging Details: Paper Box or Blister Package
Delivery Time: Around 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000pcs per year
Detailed Product Description
Outer Diameter: 105mm To 350mm Saw Blade Application:: General Purpose
Cutting Enviroment: Dry And Wet Cutting Shape:: Semgented Saw Blade
Port:: Shanghai Delievey Method: Courier/air /sea
Color:: Based On Clients' Request. Segment Height: 7mm Or 10mm.
Package:: Paper Box Or Blister Package

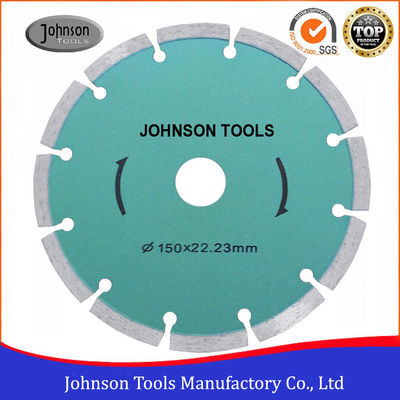

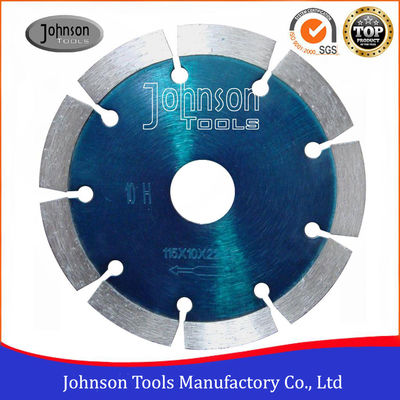

105-350mm Sintered Saw Blade , General Purpose Saw Blades for Dry or Wet Cutting.



Sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for cutting block, concrete, pavers and brick, etc. Outer diameter can be done from 105mm to 350mm.



Specifications:

Size from 4" to 14" (105mm to 350mm)

Segment height: 7mm or 8mm or 10mm

Center hole: 16mm or 20mm or 22.23mm

Lead time: Around 15-20day.



APPLICATIONS:

Widely used in cutting Block, Brick, Concrete, Pavers, Stone, etc.


FEATURES:

Sintered segmented saw blade with efficient cutting all range of materials.

Both Dry and Wet Use.

Maximizing the value with good performance.





Details spec.:



Item No. Inch mm Teeth number Segment Thickness Segment Height Inner hole
SGP-105 4 105 8nos 1.8 7/10 16/20
SGP -110 4.3 110 8nos 1.8 7/10 16/20
SGP -115 4.5 115 9nos 1.8 7/10 20/22.23
SGP -125 5 125 9nos 1.8 7/10 20/22.23
SGP -150 6 150 12nos 2 7/10 20/22.23
SGP -180 7 180 14nos 2 7/10 20/22.23
SGP -200 8 200 14nos 2.2 7/10 20/22.23
SGP -230 9 230 16nos 2.2 7/10 20/22.23
SGP -250 10 250 18nos 2.4 10 20/25.4
SGP -300 12 300 22nos 3 10 20/25.4
SGP -350 14 350 24nos 3.2 10 25.4





Sintered Dry Cut Diamond Blade , 105-350mm Masonry Cutting Blade







   Sintered Dry Cut Diamond Blade , 105-350mm Masonry Cutting Blade
