Product Details:
|
| Product Name: | Saw Blade | Type: | Circular Saw Blades |
|---|---|---|---|
| Cutting Material: | Reinforced Concrete | Advantage: | Heat Resistance |
| Power: | 3HP-85HP, Or As Your Request | Application: | Electric Tracking Machine, Air Or Hydraulic Saws |
| Performance: | Fast Cutting, Long Life | Segment Height: | 10mm, 12mm |
| High Light: | diamond concrete cutting blades,concrete wall saw |
||

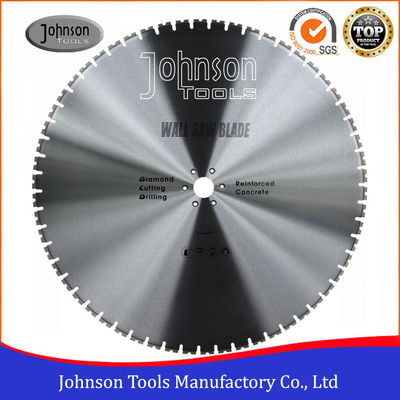

600-1600mm laser welded diamond wall saw blade for wall saw with Single U segment
Wall saw blade are used for cutting concrete, reinforced concrete, brick, heavy reinforced concrete etc. widely apply to delimotion works, Civil engineering etc.
Usually different wall saw machine need different diameter and pin holes, as a direct factory, we could do as same as your request.
Feature
1. 100% laser welding technology.
2. Steel cores comes from one of largest steel blanks factory in China.
3. Suit to 10HP to 80HP, or do as your request.
4. High speed&fast cutting, smooth and long cutting life.
5. Installed for any brand wall saw machine.
Specification
1. Diameter:600-1600mm
2. Segment thickness:4.8/5mm
3. Segment height:10/12mm
4. Inner hole size:25.4mm, 50mm, 60mm, 80mm or as your request.
| Inch |
Diameter (mm) |
Segment length (mm) |
Segment thickness (mm) |
Segment height (mm) |
Segment number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48” | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56” | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60” | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64” | 1600 | 40 | 4.8/5 | 10/12 | 92 |
Packing&Shipping:
1. 600-1000mm diamond saw blade, 5pcs packed in one plywood. 1200-1800mm saw blade, 2-3pcs packed in one plywood.
2. Less than 45kg, suggest to send by express, More than 45kg, less than 100kg, suggest to send by air, more than 100kg, suggest to send by sea.
