M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw

M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw
M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw
M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw

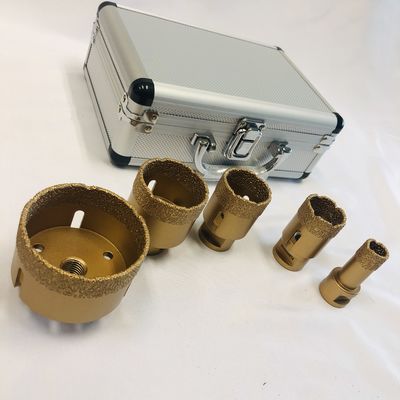

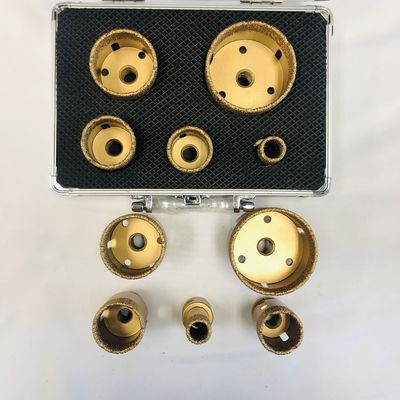

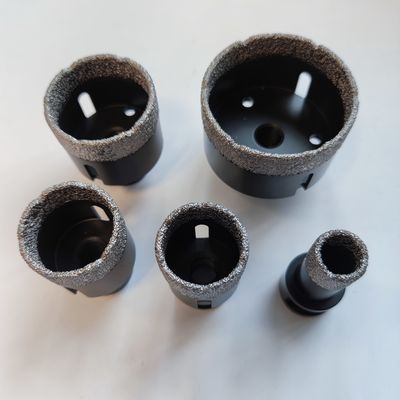

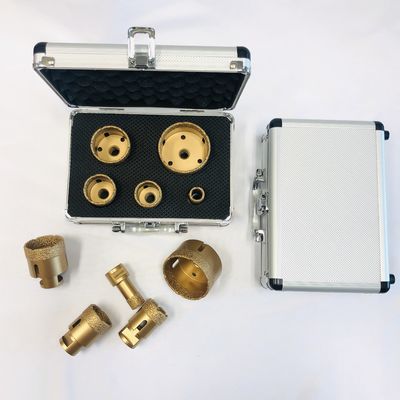

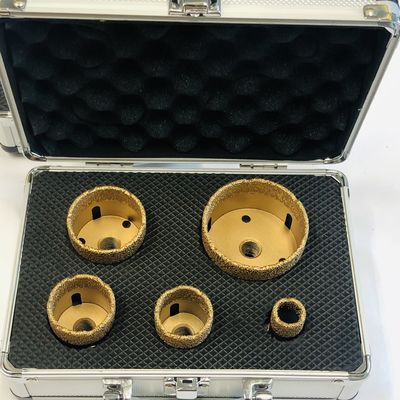

Large Image :  M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw

Product Details:
Place of Origin: CHINA
Brand Name: JOHNSON TOOLS
Certification: GB, SGS
Model Number: CB-VB 6-68mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Aluminum Box
Delivery Time: 15days.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month

M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw

Description
Products: 5pcs Aluminum Box M14 Vacuum Brazed Diamond Core Drill Bit Set Tools M14 Technology: Vacuum Brazed
Use: Dry For Drilling Ceramic, Marble,granite, Etc Size: 20/35/40/55/68mm
Connection: M14 Thread Segemt Height: 15mm
Total Length: 62mm Packing: Aluminum Box
High Light:

m14 20mm diamond core drill bit

,

m14 20mm core drill bit

,

vacuum brazed 20mm core drill bit

5pcs Aluminum box m14 vacuum brazed diamond core drill bit set tools m14

  • We can do Customized logo lasering and size lasering by ourself.
  • The Hex shaft makes these perfect for use in a battery drill driver.
  • Can comfortably drill 45 or more holes in the hardest grade 5 porcelain.
  • Allow the drill and the rotation to cut the hole.
  • Never use the hammer action it will destroy the diamond tip.
  • Use at around 1500-3000 rpm.
Product Name  Tile Hole Saw Diamond Core Drilling Bits
Appilcation  Tile/Porcelain/Ceramic etc
Usage  Dry Use
Features Suitable for many types of angle grinder machine
Vacuum Brazed diamond technology provide very high efficiency,cuts faster,durable and sturdy
Dry drilling without water, longer life with water
Less Chipping, minimizing breakage, less heat generation, Better finish quality



Product Name
Diamond Drill Bits with 1/4-Inch Hex Shank
Material
Artificial diamond and Steel body
Size
6mm, 8mm, 10mm,12mm,14mm
Packing Information
1pcs/box or 1 pcs blister
Notice
Dry drilling without water





Out Diameter Total Length Connection Teeth Height
20mm 62mm M14 or 5/8"-11Thread 10mm
35mm 62mm M14 or 5/8"-11Thread 15mm
40mm 62mm M14 or 5/8"-11Thread 15mm
50mm 62mm M14 or 5/8"-11Thread 15mm
68mm 62mm M14 or 5/8"-11Thread 15mm



Description of application effect

1. Wax inside for cooling, Dry drilling without water
2. Very high efficiency, multi-purpose drilling
3. Vacuum Brazed technology and high quality diamond grains provide high efficient working and long time performance
4. Alternatively place the drill at a 45 degree angle. Drill until the drill bit starts to penetrate the material and then bring the drill up into the upright position and continue.
5.Ensure all the forms of percussion or hammer action are turned off.



M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw 0

M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw 1

M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw 2

M14 Vacuum Brazed 20mm Diamond Core Drill Bit For Tile Hole Saw 3
