Product Details:
|
| Product Name: | Diamond Circular Saw Blade | Technology: | Laser Welded |
|---|---|---|---|
| Outer Diameter: | 12inch | Center Hole: | 25.4mm Or As Your Request |
| Usage: | Cutting Granite | Package: | Carton |
| HS Code: | 82023910 | ||
| High Light: | diamond saw blades for stone,diamond saw blades for concrete |
||

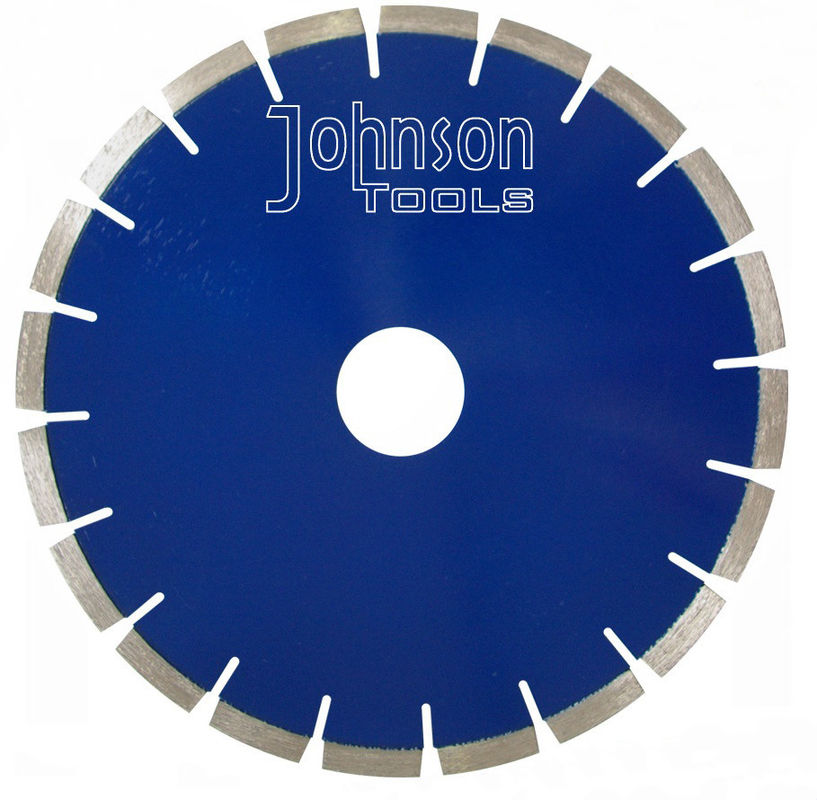

12inch 300mm Laser Welded Diamond Circular Saw Blade for Cutting Hard Granite
1. Description of the 300mm Laser welded saw blade for granite
With its large application range and broad cutting spectrum these diamond cutting blades offer the user great durability, performance and lifetime. These diamond disc can be used on angle grinders, disc cutters, bench saws. These cutting edge diamond blades allow unrivalled performance in most common stone materials; these high quality diamond blades provide the user with the great cutting versatility and some of the fastest diamond cutting characteristics available from any comparable diamond blade on the market.
We can offer our clients good after-sale service and professional technical assistance.
2. Features of the 300mm Laser welded saw blade for granite
1. For cutting granite
2. Competitive price and opportune delivery.
3. Suit to a variety of stone, such as granite, sandstone, limestone, basalt.
4. 100% laser welding brazed technology.
5. Accurate cutting and no chipping.
6. Different specifications and grades meet different requirement.
7. Dry or wet cutting.
3. Specification Information of the 300mm Laser welded saw blade for granite
1. Diameter: 12"/300mm
2. Segment length: 40mm
3. Segment thickness: 3mm
4. Segment height: 7/10/12/15mm
5. Inner hole: 22.23mm, 25.4mm, 50mm, 60mm or as your request.
6. Type: normal steel disc and silent steel disc
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (mm) |
| 12" | 300 | 40 | 3.0 | 7/10/12/15 | 21 |
Other size of the Diamond laser saw blade for granite
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (mm) |
| 4" | 105 | 32 | 2.2 | 7/10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12/15 | 9 |
| 6" | 150 | 34 | 2.2 | 7/10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 7/10/12/15 | 18 |
| 14" | 350 | 40 | 3.2 | 7/10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 32" | 800 | 24 | 6.0 | 10/12/15 | 46 |
4. Packing and shipping of the 300mm Laser welded saw blade for granite
Packing: Each saw blade is packed in white box or colored box packing, then according to the size, 10pcs put in an export standard carton, carton size: 31 x 31 x15cm.
Shipping: Usually by courier, air and sea, we could recommend the suitable way for actually quantity and gross weight.
