200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness

200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness
200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness 200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness 200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness 200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness

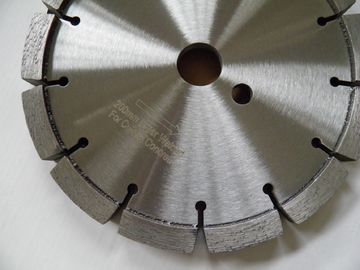

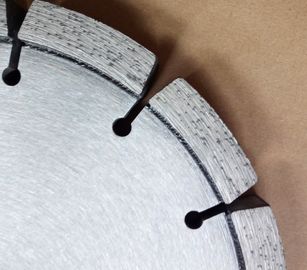

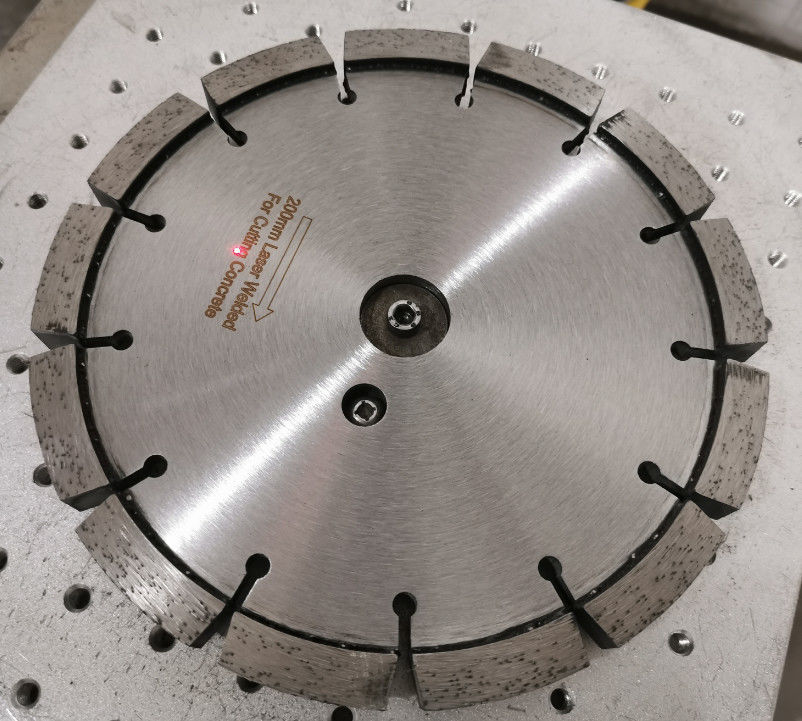

Large Image :  200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS,GB
Model Number: STP
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiate
Packaging Details: white box
Delivery Time: 7 - 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month

200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness

Description
Outer Diameter: 8"(200mm) Processing Technology: Laser Welded
Usage: Wet Cutting / Dry Cutting Machine: Angle Grinder / Saws
Color: Clear Or As Your Request
High Light:

Crack Chasing Blade

,

Tuck Point Blade

200mm Laser Welded Diamond Tuck Point Saw Blade For Concrete



1. Description

200mm Laser Welded Diamond Tuck Point Saw Blade For Concrete is designed to chase and widen cracks in surface of concrete in Russia market, this tuck point blade has laser welded processing technology to meet heavy duty works, no worry about dropping segments. Our engineer from factory can make different metal bond grit for this grooving saw blade, we can do soft, medium and hard grit for different blades and meet different request from our customers.



2. Features

This kind of blade is suitable for heavy work, and it has stable performance and long cutting life. It is well exported to many countries. In addition, it has high welding strength, thick segment and heavy duty. What's more, special request also can be done based on customers.



3. Specification

1. Outer diameter: 200mm
2. Segment size: 40mm x 15mm x 12mm x 13 teeth
3. Hole: 25.4mm



Segment type Segment size Inner Hole
OD200mm tuck point blades 40x15mmx12mmx12teeth 25.4mm











Other size we could do:



Item number Diameter Inside hole diameter Rim thickness Rim height
inch mm
LTPC-105 4 105 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm
LTPC-115 4 1/2 115 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm
LTPC-125 5 125 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm
LTPC-150 6 150 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm
LTPC-180 7 180 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm
LTPC-230 9 230 22.23 mm 6/6.4/6.5/8/9.5/10mm 7/10 mm

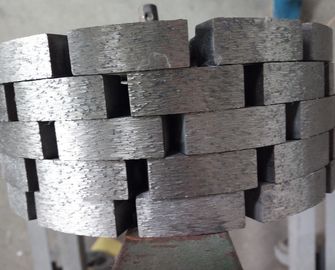

4. Package

200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness 0

200mm Laser Diamond Tuck Point Blade For Cutting Concrete With 15mm Thickness 1



More Information Please Contact Us!
