500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life

500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life
500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life 500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life 500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life 500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life

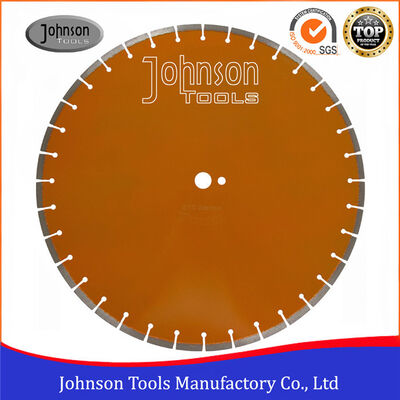

Large Image :  500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS,GB
Model Number: WBr
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiate
Packaging Details: Carton Box
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 2000pcs/Month

500mm Laser Welded Diamond Circular Saw Blade for Fast Cutting Reinforced Concrete with Long Life

Description
Product Name: Diamond Saw Blade Technology: Laser Welded
Size: 500mm Inner Hole: 25.4mm Or As Your Request
Application: Reinforced Concrete Color: Clear Or As Your Request
High Light:

concrete diamond blade

,

circular saw concrete blade

1. Description of 500mm Diamond Saw Blade for Reinforced Concrete with Good Efficiency

500mm diamond concrete saw blade is the professional diamond tools which installed on handheld power saws, walk behind concrete saws, road cutting machine for cutting reinforced concrete structures, road construction. It has a good cutting ability, static non-destructive, high efficiency, no construction dust and other characteristics.


Well exported to USA, UK, Peru, Mexico, Sweden, Iceland, Poland, Denmark, Croatia, Bulgaria, Italy, France, Spain, Norway, Netherland, Malta, Singapore, UAE, India, Australia, South Africa etc. Quality is well accepted by the customers.


2. Feature of 500mm Diamond Saw Blade for Reinforced Concrete with Good Efficiency
1) High precision and speed for cutting reinforced concrete
2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.


3. Specification of 500mm Diamond Saw Blade for Reinforced Concrete with Good Efficiency
Diameter:500mm
Segment thickness:4.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
20" 500 40 4.0 10 36
20" 500 40 4.0 12 36
20" 500 40 4.0 15 36


Other size we could do

Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
24" 600 40 4.4 10/12/15 42


4. Packing and Shipping

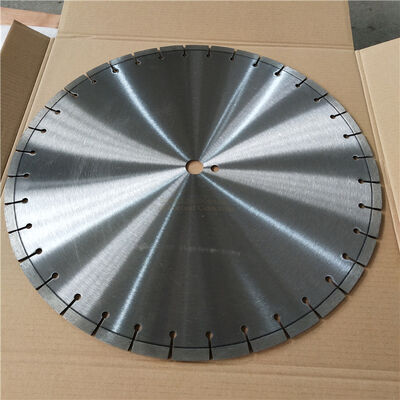

Each 20" laser saw blade is packed in white box, then 5pcs put in an export standard carton, gross weight per carton is limited within 30kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
