Product Details:
|
| Outer Diameter: | 22" | Customized: | Yes |
|---|---|---|---|
| Segment Thickness: | 4mm | Segment Height: | 10/12/15mm |
| Cutting: | Concrete, Hard Concrete | ||
| High Light: | concrete diamond blade,circular saw concrete blade |
||

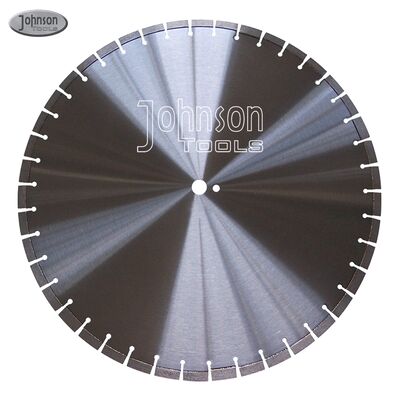

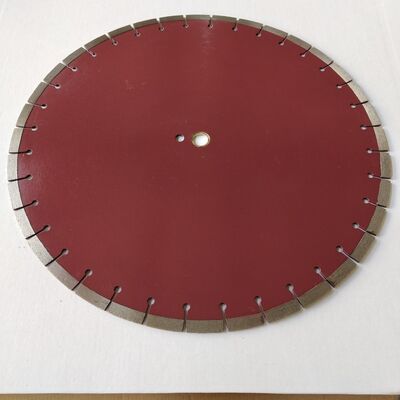

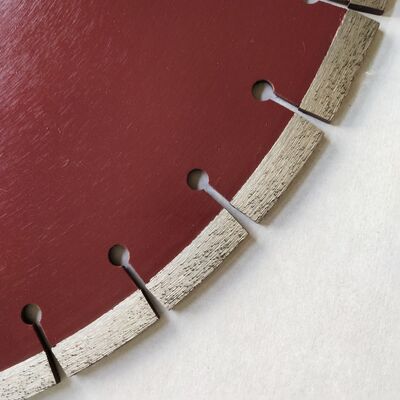

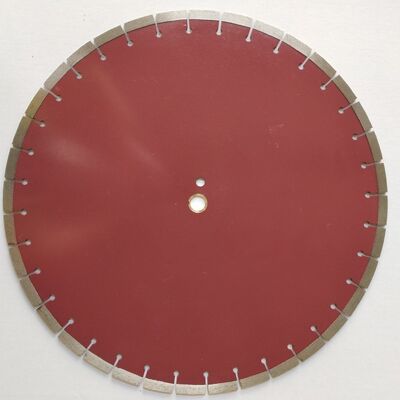

550mm Laser Diamond Concrete Saw Blades For Dry Or Wet Cutting Concrete Floor
1. Description of 550mm Laser Blade With Good Sharpness for Dry or Wet Cutting Concrete Floor
1. Fast cutting & long life & Stable performance, High grade of diamonds
2. Different bonds are for different applications & precise segment size
3. Working safe, quiet, and precise, reducing cutting & working time
4. Great adaptability & No chipping
2. Specification information of 550mm Laser Blade With Good Sharpness for Dry or Wet Cutting Concrete Floor
Diameter:550mm
Segment thickness:4mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 22" | 550 | 40 | 4 | 10 | 38 |
| 22" | 550 | 40 | 4 | 12 | 38 |
| 22" | 550 | 40 | 4 | 15 | 38 |

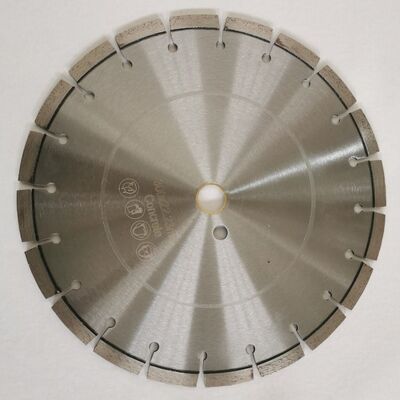

Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
Different segment types can offer, depend on you require:
3. Packing and Shipping
Each 22" laser saw blade is packed in white box, then 4pcs put in an export standard carton, gross weight per carton is limited within 30-37kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
4. FYI
When you place the order, please the more details about the concrete saw blade you want:
Diameter
Inner hole
Segment size (if need special request )
Location hole
Thank you in advance!
