14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness

Certification
China Johnson Tools Manufactory Co.,Ltd certification
China Johnson Tools Manufactory Co.,Ltd certification
Customer Reviews
To do the same bond as we use is very important. We did many tests at your blades And the performance is very good.

—— Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade.

—— Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete.

—— Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed.

—— Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s avery good indice!

—— Julia

And its good, We need more :) Saw blade 20x 600mm 20x 800mm 3x 1000mm 10x1200mm.

—— Kovacevic

I'm Online Chat Now

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness
14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness 14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness 14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness

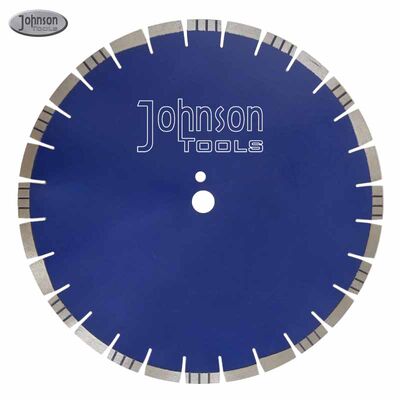

Large Image :  14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 350mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 15-35days
Payment Terms: Western Union, L/C, T/T,PayPal
Supply Ability: 1000pcs per month

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness

Description
Outer Diameter: 350mm Center Hole: 25.4mm
Segment Thickness: 3.4mm Segment Height: 12mm
High Light:

concrete diamond blade

,

concrete circular saw blade



1. Description of 350mm Diamond Turbo Cutting Saw Blades 3.2mm Thickness for Fast Cutting Reinforced Concrete



350mm Turbo Concrete Cutting Saw Blades are professionally designed for wet or dry cutting reinforced concrete, high quality diamond makes faster cuting and longer cutting life.



2. Specification information of 350mm Diamond Turbo Cutting Saw Blades 3.2mm Thickness for Fast Cutting Reinforced Concrete



Diameter:350mm
Segment size:40x3.2x12mm

Segment teeth: 24nos

Inner hole:25.4mm

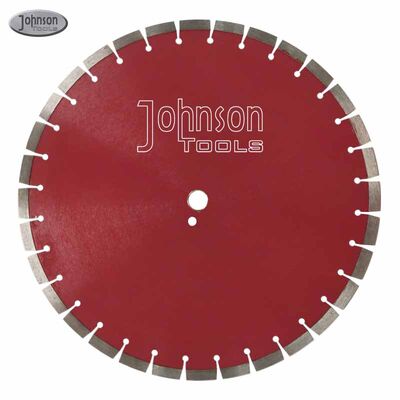

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness 0

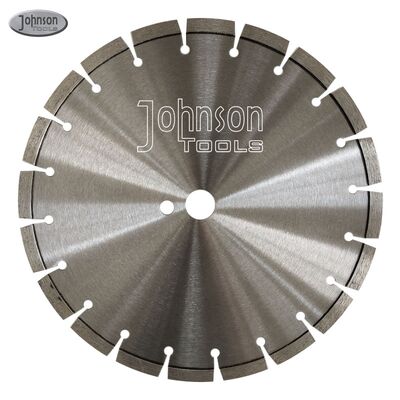

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness 1

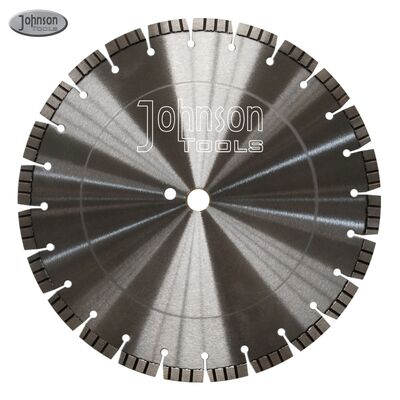

14 Laser Diamond Saw Blades With Turbo Segments , For Concrete Cutting , 3.2mm Thickness 2


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40





3.Feature of 350mm Diamond Turbo Cutting Saw Blades 3.2mm Thickness for Fast Cutting Reinforced Concrete



1) High precision and speed for cutting reinforced concrete


2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.





4. Packing and Shipping



Each laser saw blade is packed in white box, then 100pcs put in an export standard carton, gross weight per carton is limited within 13kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.
