Product Details:
|
| Type: | Diamond Blades | Manufacturing Process: | Laser Welding |
|---|---|---|---|
| Inner Hole: | 25.4mm, 50mm As Your Request | Segment Thickness: | 5mm |
| Segment Height: | 10/12/15mm | Cutting: | Reinforced Concrete |
| High Light: | concrete diamond blade,circular saw concrete blade |
||

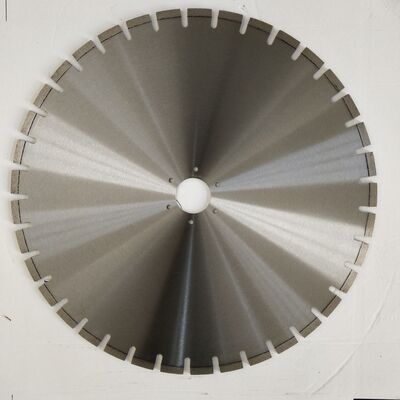

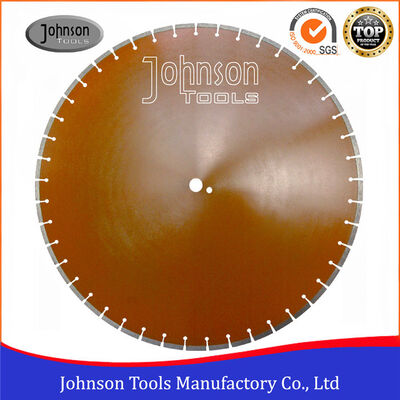

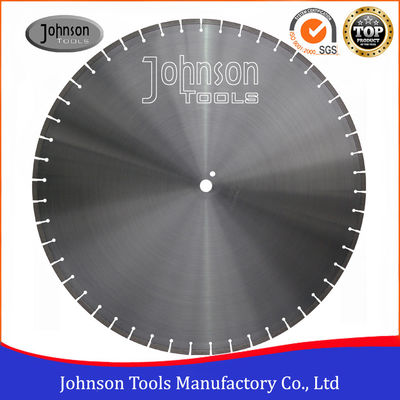

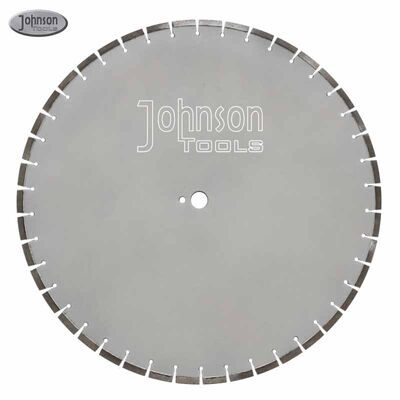

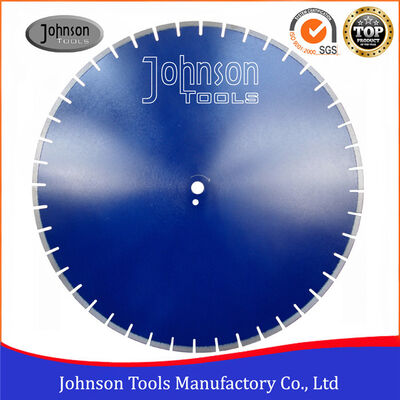

1. Specification of 700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete
Diameter:700mm
Segment thickness:5.0mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 28" | 700 | 40 | 5.0 | 10 | 40 |
| 28" | 700 | 40 | 5.0 | 12 | 40 |
| 28" | 700 | 40 | 5.0 | 15 | 40 |
Other size Concrete Saw Blade we could do as following
| Inch | Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
Laser mark: size,direction arrow,cutting material, logo as you request
Usage: hollow core slabs for floors and walls, power lines and railways,construction industry,prestressed concrete elements
2. Description of 700mm Diamond Cutting Saw Blade with Sharp Segments for Reinforced Concrete
700mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.
Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.
Well exported to Australia and Asia, Europe, America, Africa, market.
3. Packing and Shipping
Each 28" laser saw blade is packed in white box, then 5pcs put in an export standard carton, gross weight per carton is limited within 60kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
4. Our Factory
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China’s stone and construction industries.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
