High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm

High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm
High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm

Large Image :  High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm

Product Details:
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 180mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 15-35days
Payment Terms: Western Union, L/C, T/T,PayPal
Supply Ability: 1000pcs per month

High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm

Description
Outer Diameter: 180mm Center Hole: 32mm With KW
Segment Thickness: 3.2mm Segment Height: 10/12/mm
Cut: Concrete Grooving , Multi Blade
High Light:

concrete circular saw blade

,

circular saw concrete blade



180mm Diamond Multi Blade For Concrete Grooving , Multi Blade For Bridge With KW Hole



1. Description

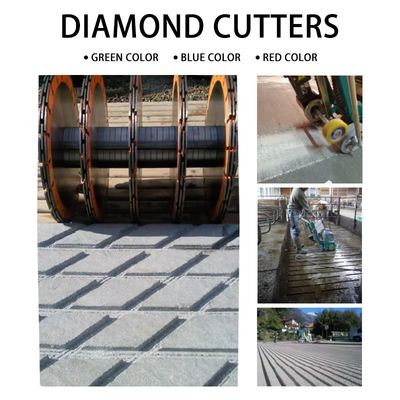

Concrete groove can increase friction, which helps prevent hydroplanes and reduce roadway accidents.

Specially designed saw blades are suitable for multi-chip cutting at the same time. Which bring cost-effectively extended pavement life .


2. Feature


1) High precision and speed for grooving concrete. Can cut 16 slots at the same time
2) Widely used in highway, airport runway, bridge.

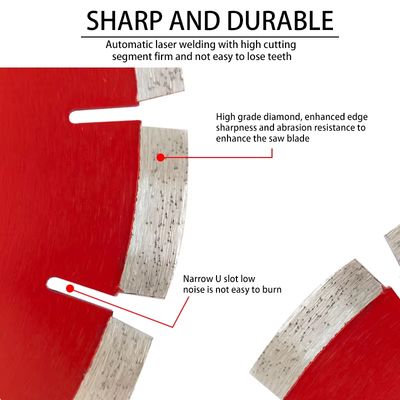

3) Special design segments have more diamond, makes your grooving jobs easy. And keep you in the working area and away from traffic.


3. Specification


Diameter:180mm
Segment thickness:3.2mm
Segment height:10/12/mm
Inner hole: as your request



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
7" 180 30 3.2 10 15


Other size could be made upon request.


High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm 0



High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm 1



4. Packing and Shipping



Each 7" laser saw blade is packed in white box, then around 50pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.



High Precision Diamond Concrete Saw Blades For Concrete Grooving 180mm 2
