High Precision Diamond Concrete Saw Blades With 16mm , 20mm Center Hole

Basic Information
Place of Origin: China
Brand Name: Johnson Tools
Certification: SGS, GB
Model Number: 250mm
Minimum Order Quantity: 50 pcs
Price: Negotiate
Packaging Details: white or colored package
Delivery Time: 20-35days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000pcs per month
Contact Now

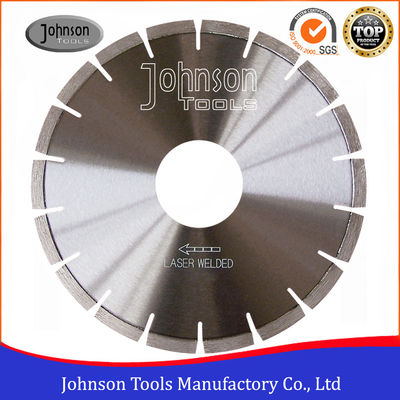

250mm Diamond Concrete Saw Blades for Fast Cutting Cured Concrete





1. Description of 250mm Diamond Concrete Saw Blades for Fast Cutting Cured Concrete



10" Laser welded Diamond Blade designed for low and high horse power walk behind saws and high speed hand held saws.

Wet or dry cutting for no reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.

Undercut protection to prevent segment loss during cutting. Maximum cutting performance and longer life via tough wear-resistant segments.


2. Feature of 250mm Diamond Concrete Saw Blades for Fast Cutting Cured Concrete



1) High precision and speed for cutting cured concrete
2) Widely used in various types of concrete structural, such as concrete, reinforced concrete, cured concrete, green concrete, brick concrete, concrete pipe.
3) Cutting cured concrete is not restrictedby the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.



3. Specification of 250mm Diamond Concrete Saw Blades for Fast Cutting Cured Concrete


Diameter:250mm
Segment thickness:2.6mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm or as you request



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
10" 250 40 2.6 10/12/15 16


Other size Concrete Saw Blade we could do as following



Inch Diameter
(mm)
Teeth length
(mm)
Teeth thickness
(mm)
Teeth height
(mm)
Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46


4. Packing and Shipping



Each laser saw blade is packed in white box, then 25pcs put in an export standard carton, gross weight per carton is limited within 28kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc
